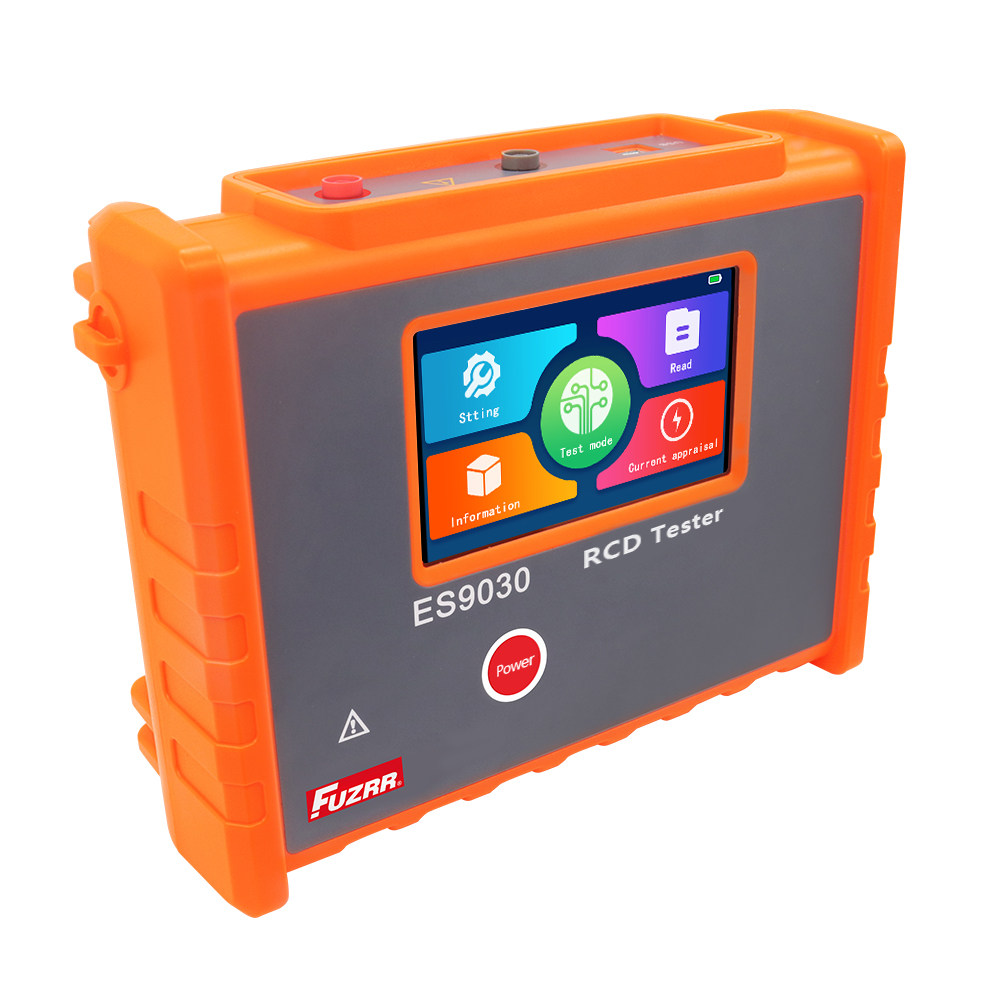

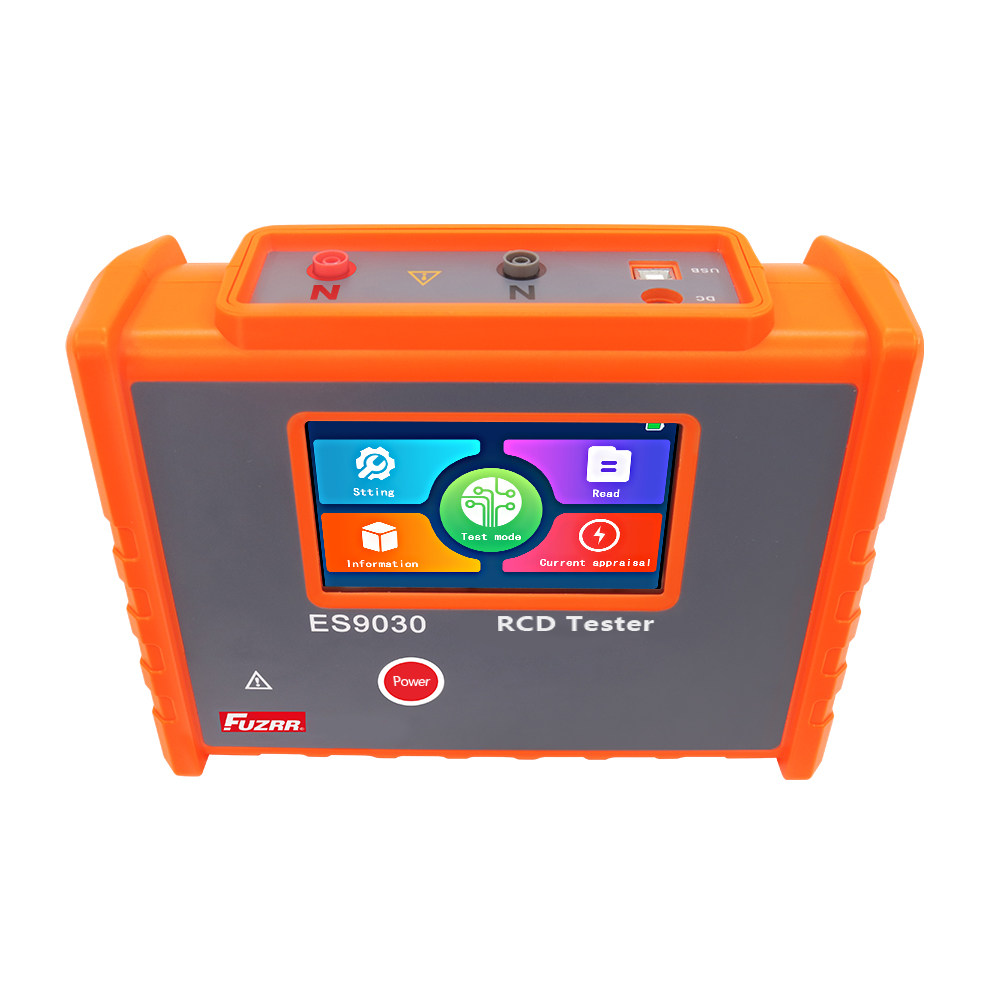

ES9030 RCD Tester
ES9030 RCD tester, also known as leakage switch detector, leakage protector tester, residual current action protector detector, residual current action protector tester, is a necessary testing instrument for engineering quality supervision stations and construction companies. Measure the operating time and operating current of the leakage switch. It is mainly used to test the leakage current, leakage non-operating current and leakage operating time of the leakage protector. It can be widely used in power supply department, agricultural power department, leakage protector manufacturer, labor security inspection department in construction, mining, machine tool and other industries, as well as electricians.

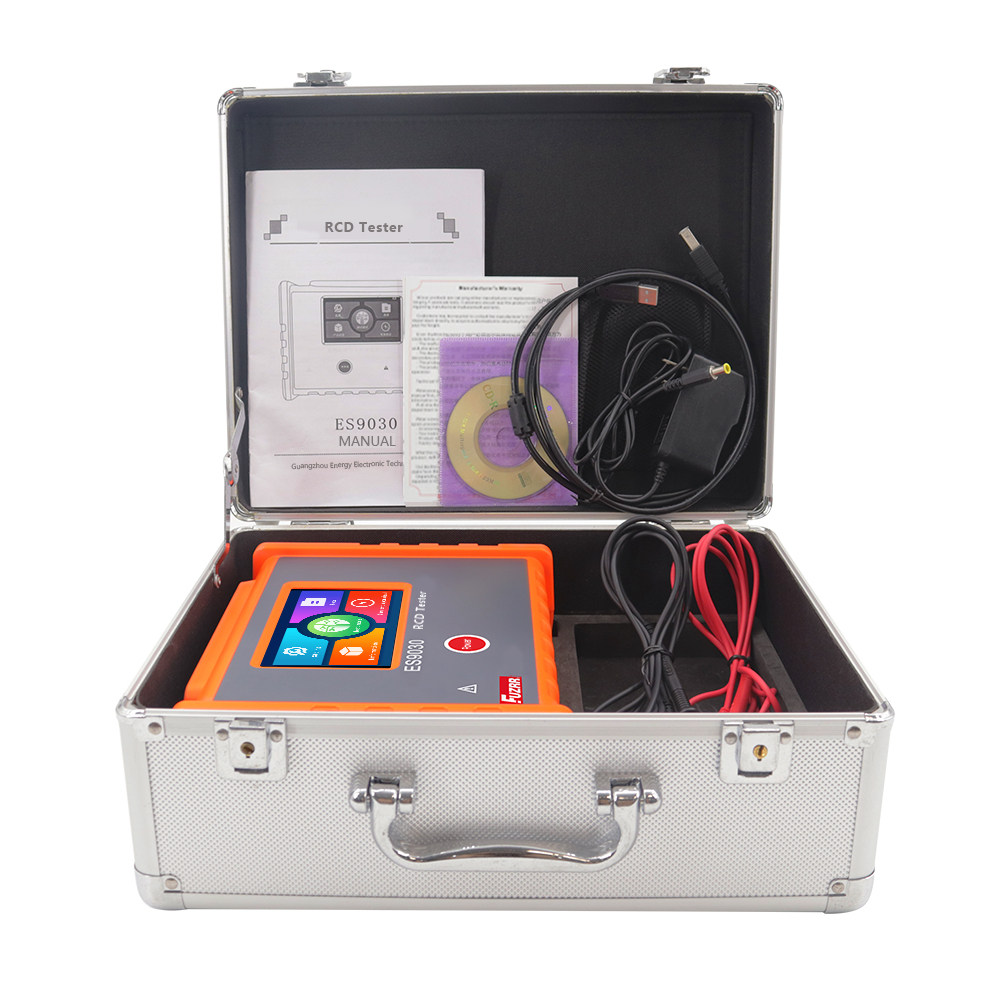

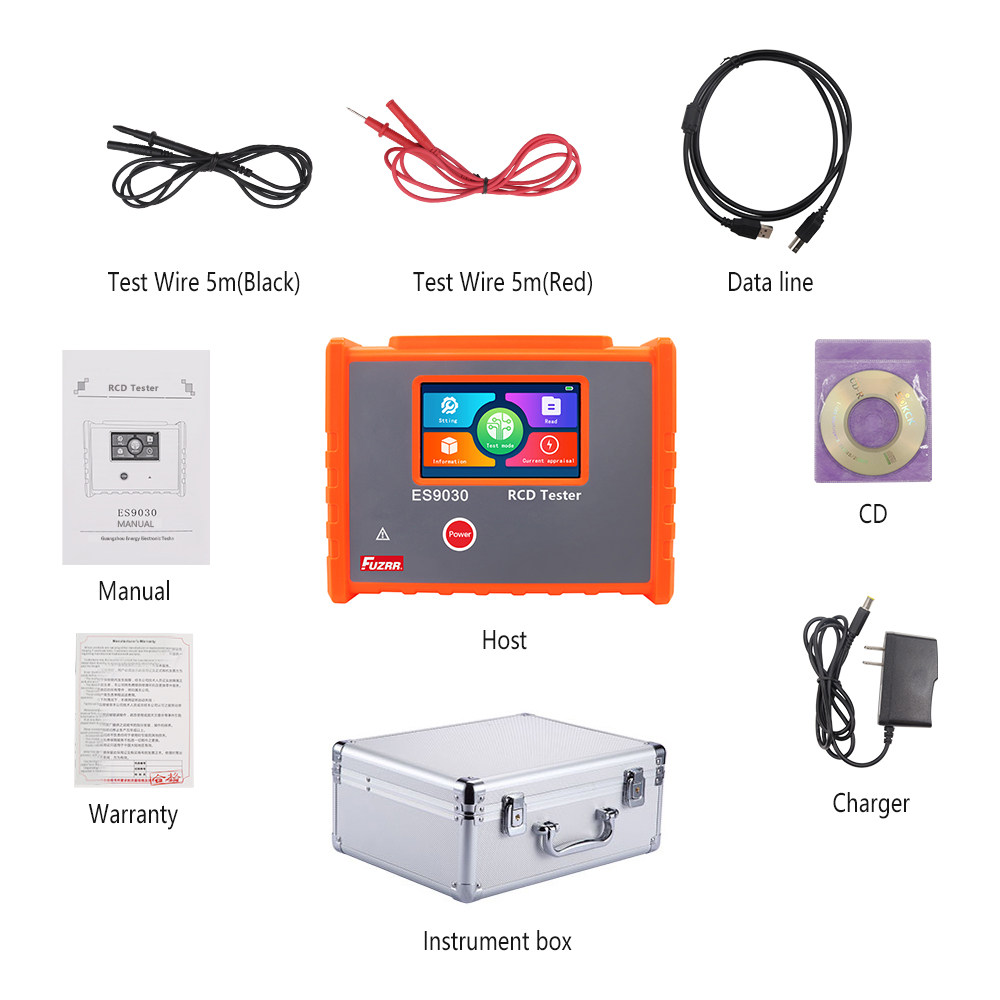

ES9030 RCD tester is composed of host, monitoring software, test line, communication line, etc. It has a charging function, no need to search for electricity on site, a full-color large-screen LCD display, which is clear at a glance, and the touch-screen operation is convenient and easy to use. Large-capacity storage of 500 sets of data, voltage measurement range: 1.0V～1000V, measurement accuracy: ±3%dgt±3dgt. The test current is continuously adjustable from 1 to 1200mA, and the test leakage current action time range is 0 to 999ms. The upper computer software has the functions of reading, viewing, saving and reporting historical data.
