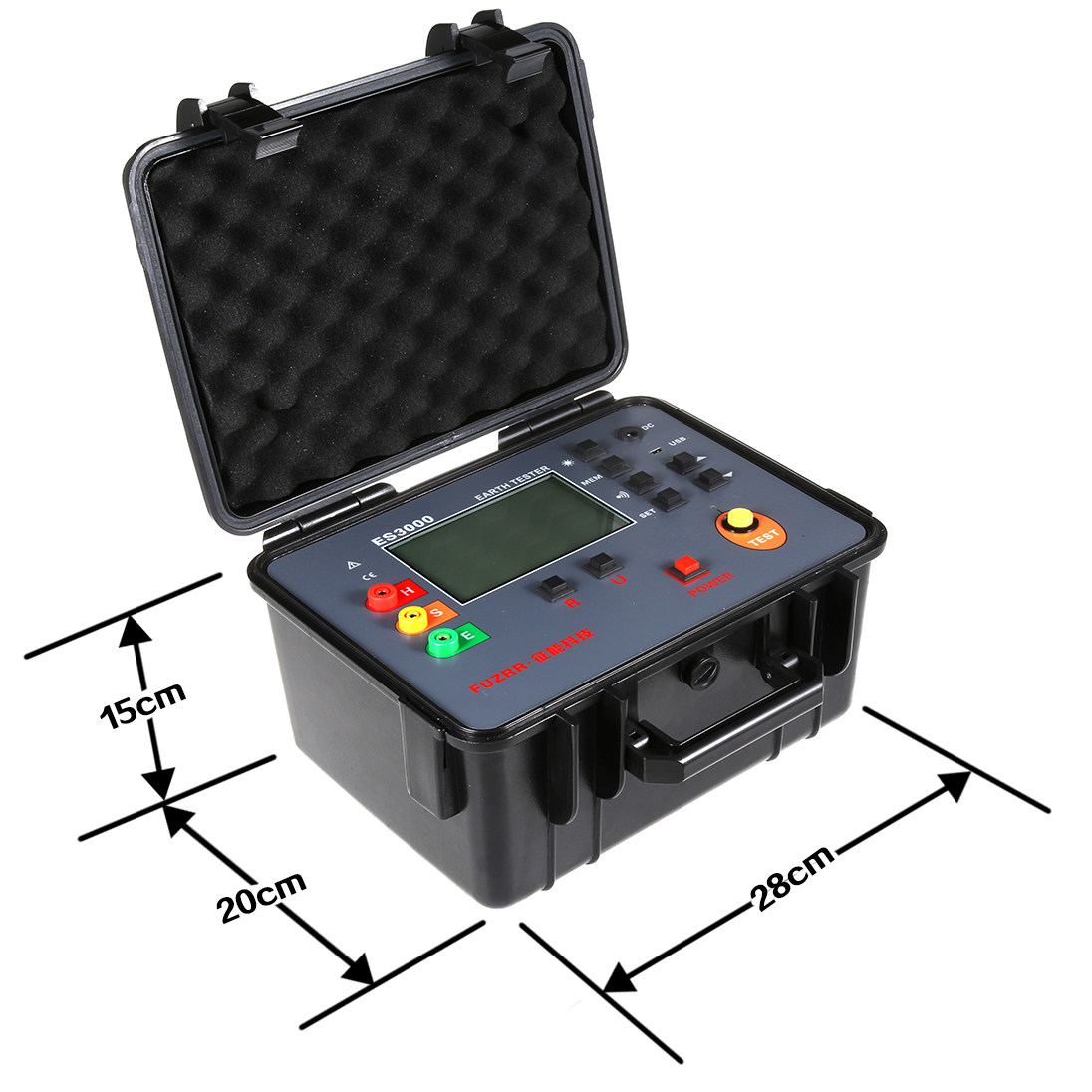

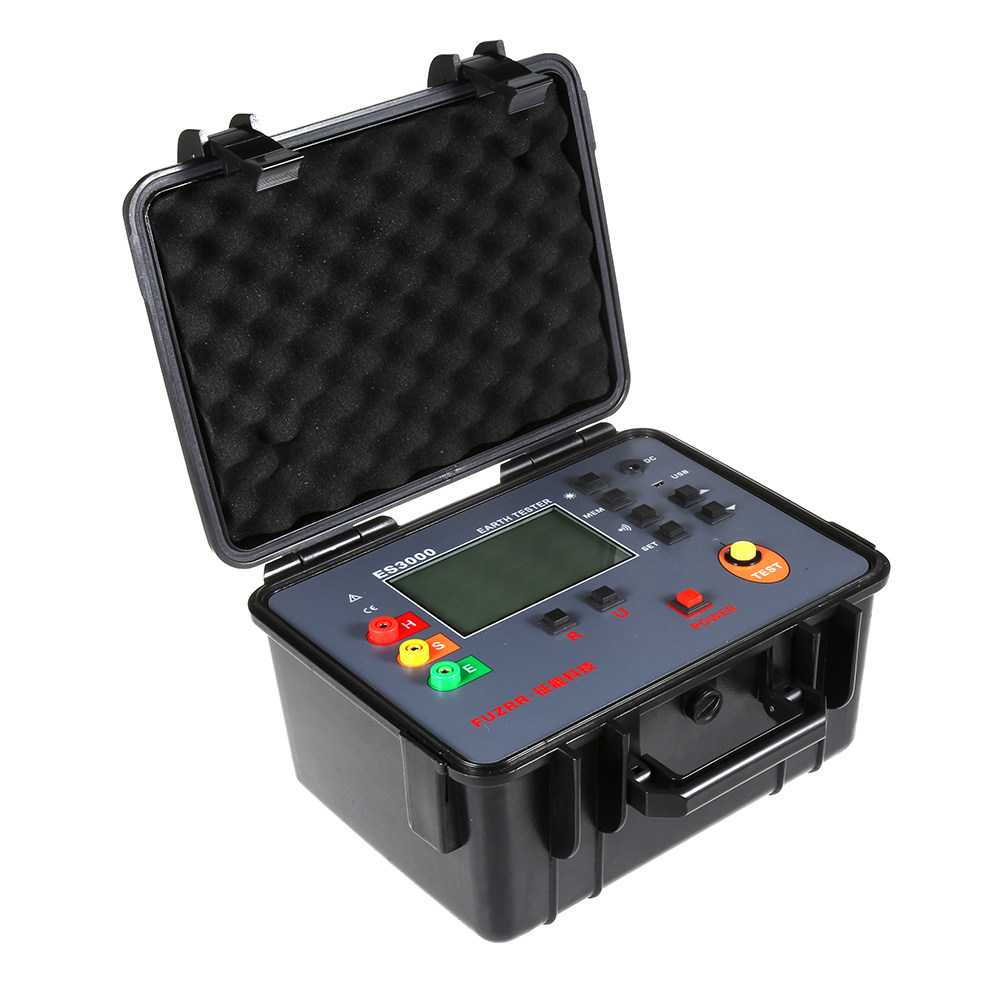

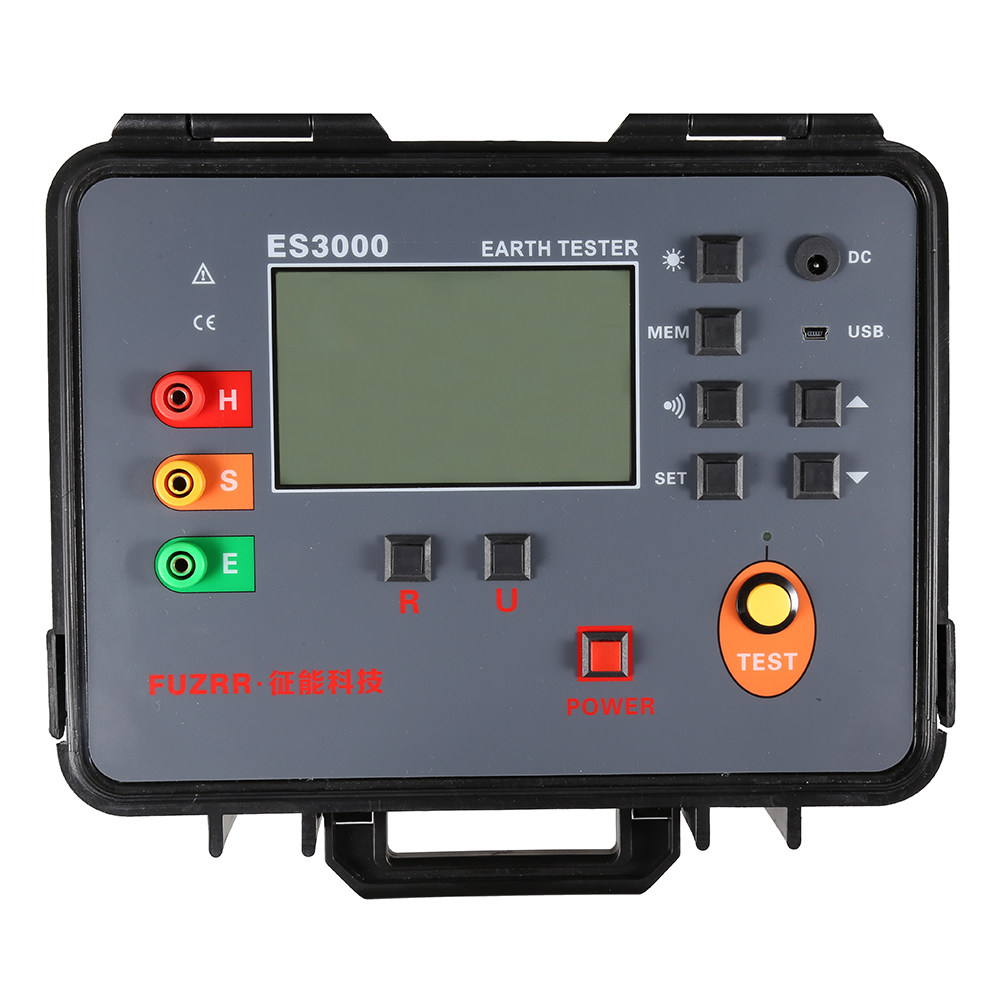

ES3000 Digital Earth Resistance Tester
ES3000 digital grounding resistance tester, also known as three-wire grounding resistance tester, grounding resistance meter, etc., is a common instrument for testing and measuring grounding resistance commonly used instruments. It adopts large LCD gray and white screen backlight display and microprocessor technology to meet the requirements of two-wire and three-wire testing. resistance requirements. It is suitable for telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, tower transmission lines, gas stations, factory grounding grids, lightning rods, etc. The instrument test is accurate, fast, simple, stable and reliable.
ES3000 digital grounding resistance tester is controlled by a microprocessor, which can automatically detect the connection status of each interface and the interference voltage and frequency of the grounding grid. It also has the function of testing the resistance value of the auxiliary grounding electrode, and displays the measured grounding and auxiliary grounding resistance on the same screen. The value is clear at a glance. Store 500 groups of data at the same time, resistance measurement range: 0.01Ω ~ 3000Ω, ground voltage range: 0 ~ 100V. The data can be monitored online through the monitoring software, and the USB data can be uploaded to the PC and has unique functions such as value retention and intelligent alarm prompts.

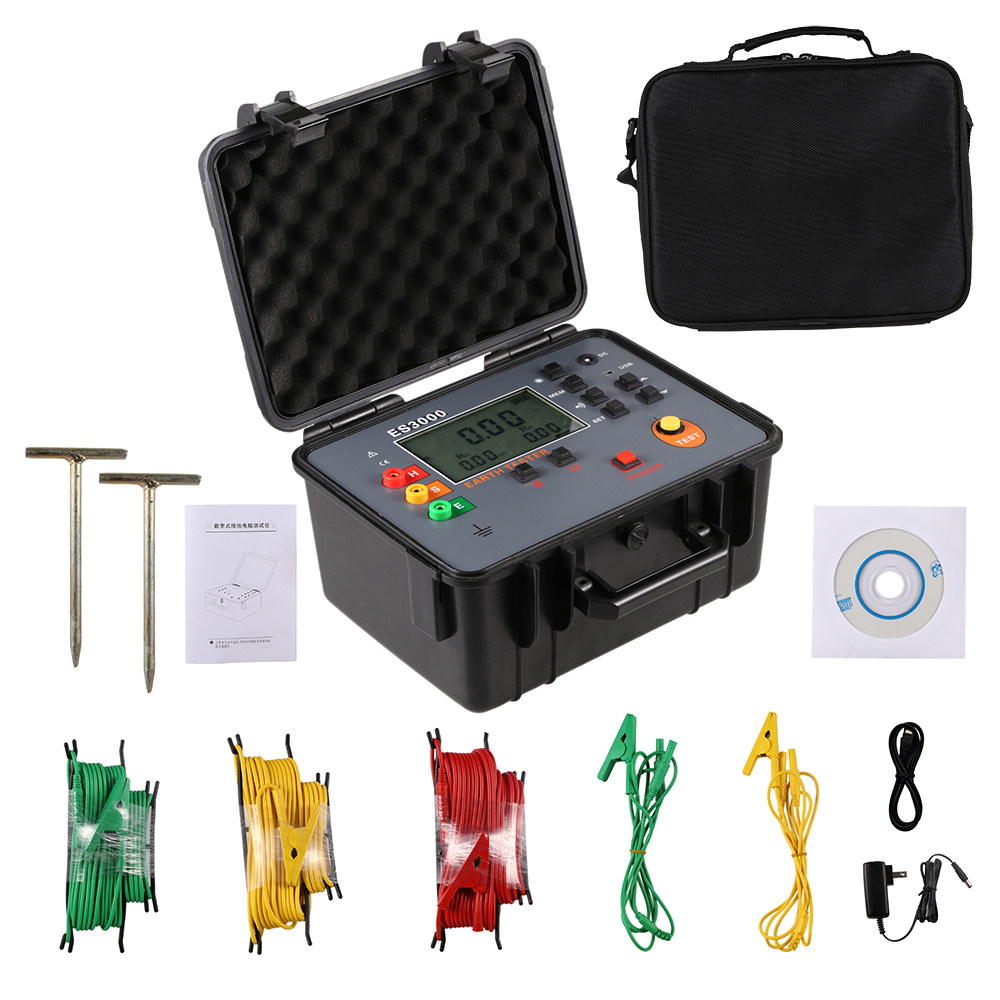

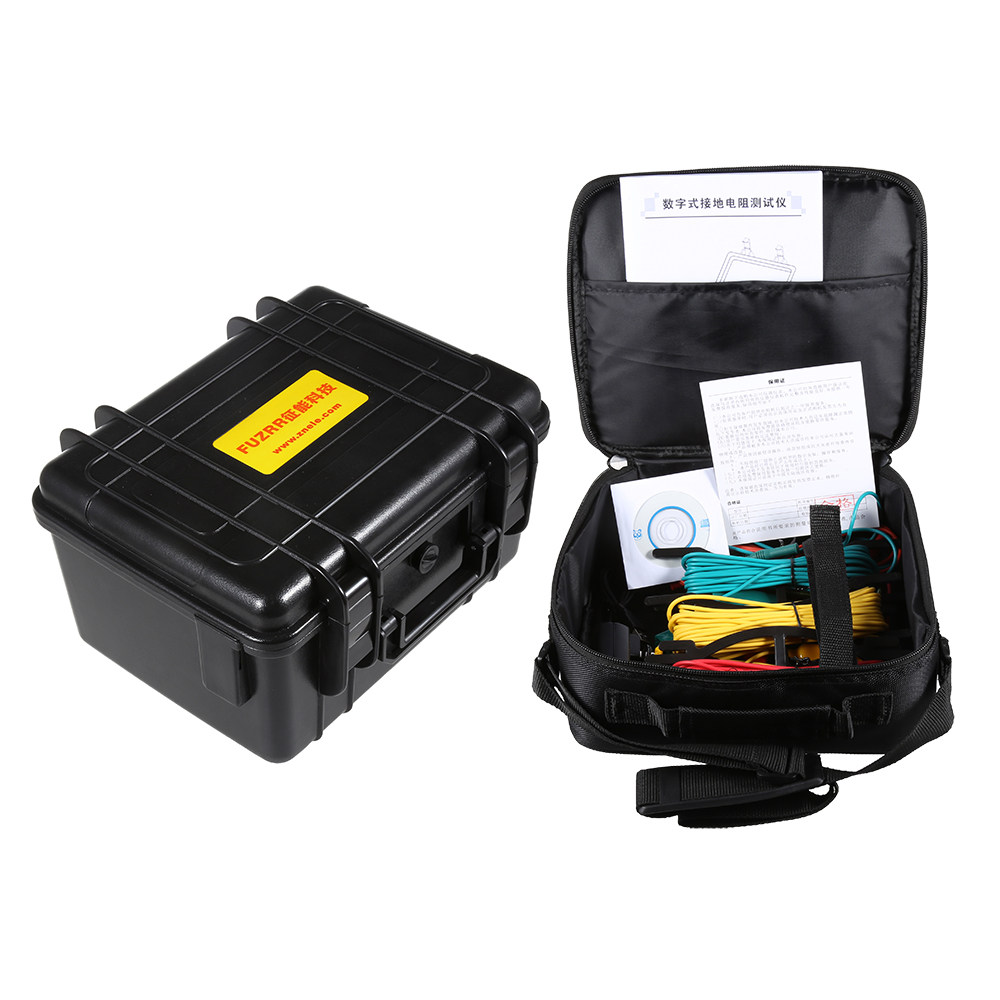

ES3000 digital grounding resistance tester is composed of host, monitoring software, test lead, USB cable and grounding pin. It has the functions of reading, viewing, saving, reporting, and printing historical data.
