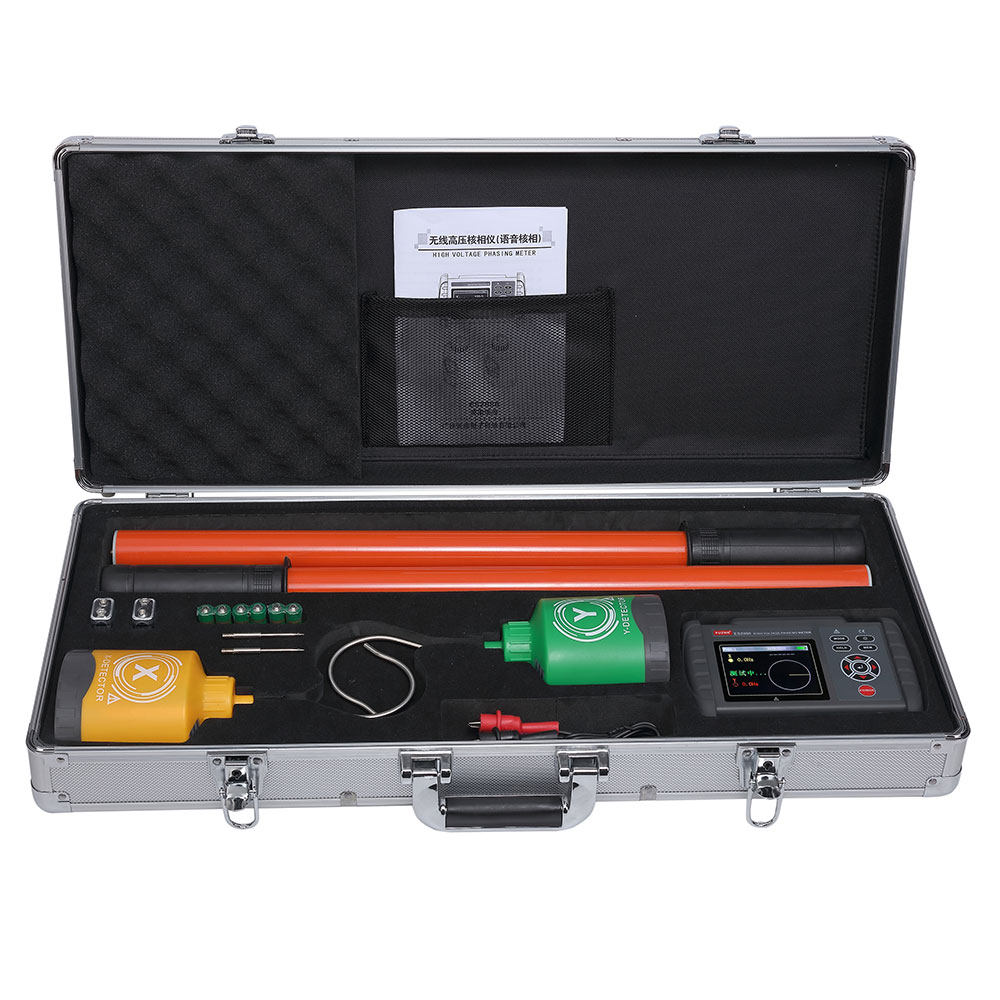

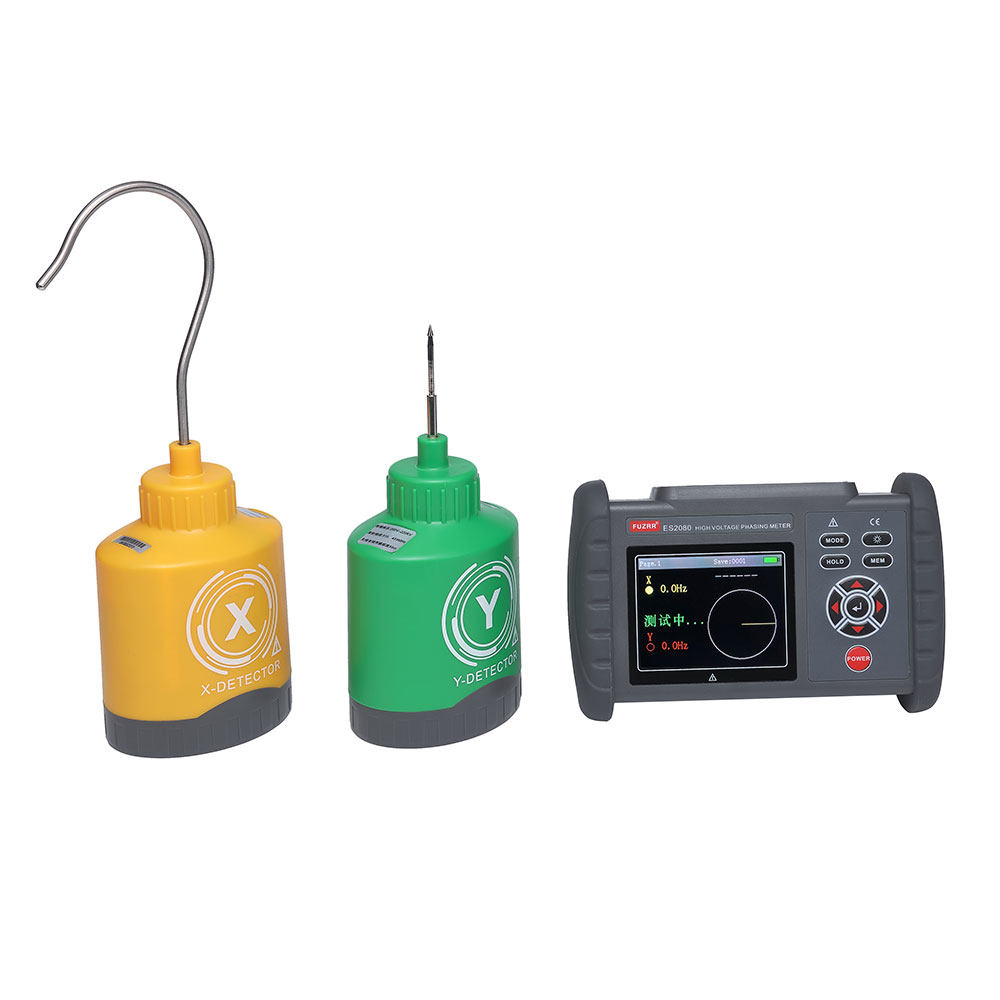

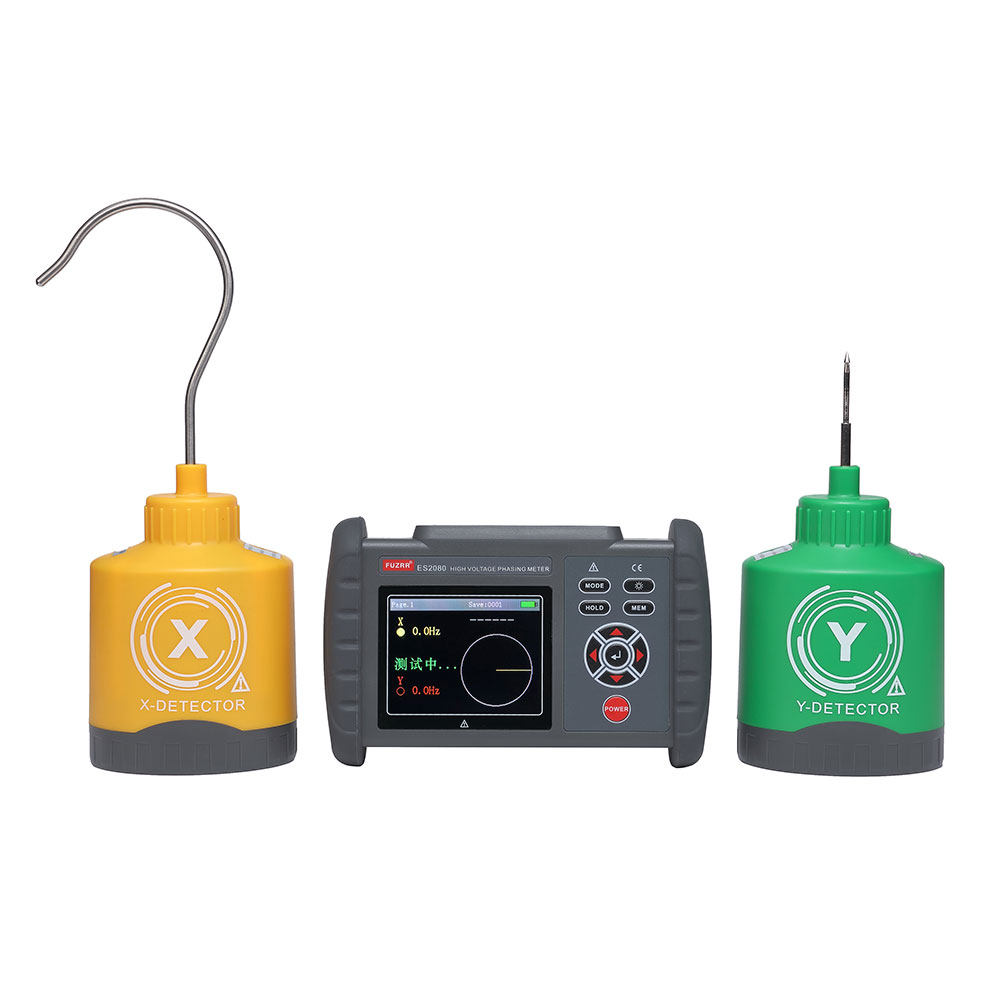

ES2080 Series Wireless High Voltage Phase Detector
ES2080 wireless high-voltage phase detector is used in power line or substation power inspection, phase verification, phase test, phase sequence judgment, transformer group judgment, etc. (line voltage: 70V~550kV). The phase detector adopts wireless transmission technology, and the transmission distance can reach 30 meters; the 3.5-inch LCD color screen can display the phase, frequency, voltage and other phase detection results on the same screen, and the dynamic vector diagram indication is clear and intuitive; it has a voice prompt "X signal is normal, The Y signal is normal, in-phase, out-of-phase, etc.
When ES2080 wireless high-voltage phase detector is conducting phase detection of high-voltage lines (when the voltage exceeds 220V), the metal probe of the detector can be gradually approached to the wire, and the phase detection can be completed when the electric field signal is sensed, and the phase detection result is directly displayed on the wireless On the receiver, when the bare wire voltage exceeds 35kV, non-contact phase detection must be used to ensure safety.
